Product Overview

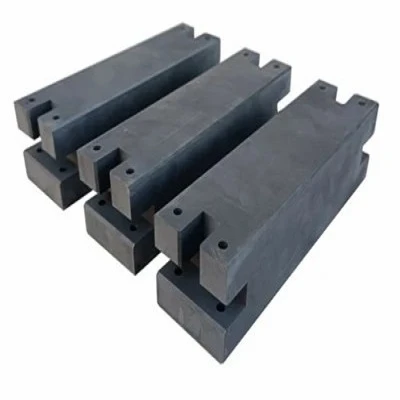

Graphite Welding Mold is a precision-machined graphite tooling component used for welding, brazing, and high-temperature joining processes.
Key Features
Uniform Heat Transfer Performance
Provides stable heat distribution during welding processes to support consistent joining quality.
High-Temperature Dimensional Stability
Maintains mold accuracy during repeated heating and cooling cycles with low thermal expansion and thermal shock resistance.
Non-Wetting Surface Performance
Reduces adhesion with molten metals such as copper and aluminum for easier demolding and cleaner finished parts.
High-Purity Graphite Material
Uses high-purity graphite materials to reduce impurity-related risks in welding applications.
Comparison Of Product Parameters
| Performance items | Standard anti-oxidation graphite block | High-end anti-oxidation graphite block |
| High-end anti-oxidation graphite block | ≥99.95% | ≥99.99% |
| Ash content | ≤50ppm | ≤5ppm |
| Volume density | 1.78~1.82 g/cm³ | 1.82~1.86 g/cm³ |
| Room temperature compressive strength | ≥55MPa | ≥65MPa |
| Room temperature thermal conductivity | 125~145 W/(m·K) | 145~160 W/(m·K) |
| Linear expansion coefficient | 2.5~2.8×10⁻⁶/℃ | 2.2~2.5×10⁻⁶/℃ |
| Long-term operating temperature | 2600℃ | 2800℃ |
| 2000℃ high-temperature weight loss rate | ≤2.5% | ≤1.2% |
| Flatness error | ≤0.06mm | ≤0.04mm |
Industrial Applications
Exothermic Welding Applications
Supports high-temperature joining processes requiring accurate positioning and stable thermal performance.
Copper and Aluminum Joining
Used for non-ferrous metal joining where clean release and reliable tooling performance are required.
Brazing and High-Temperature Assembly
Provides stable tooling support for processes requiring heat resistance and dimensional consistency.
Custom Welding Fixtures
Manufactured for customized welding fixtures and graphite tooling based on component structures and production requirements.
Company Strength and Advantages
40+ Years of Graphite Manufacturing Experience
Established in 1984, Jincheng Graphite specializes in custom graphite machining and industrial graphite components for high-temperature applications.
CNC Graphite Machining Capability
Provides precision graphite machining based on customer drawings, technical specifications, and application requirements.
Technical Engineering Support
Supported by 200+ employees and 60+ R&D and technical personnel, assisting with material selection, component design, and customized production.
Graphite Machining Capacity
Equipped with 50+ machining machines, supporting customized graphite components with machining sizes up to 1000 mm.
Multi-Industry Application Experience
Serving semiconductor, vacuum furnace, photovoltaic, metallurgy, EDM, lithium battery, and diamond tool industries.
Production Quality Control
Quality control covers graphite material inspection, machining inspection, and final product checks before shipment.
Global Delivery Support
Supporting international customers with coordinated logistics services and global delivery arrangements.
- Supporting customers across 27 global cities
- Supported by international logistics networks
- Providing multilingual communication support for global customers
- Offering 7×24-hour delivery coordination support for international orders
